E-50J Industrial Edgebander Comprehensive

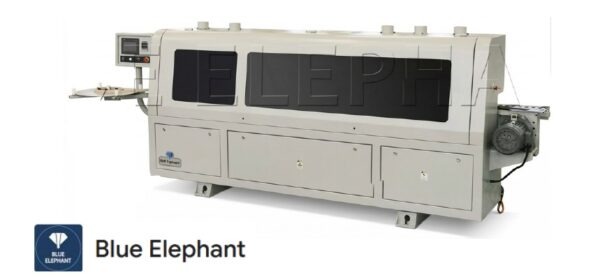

Blue Elephant E-50J Industrial Edgebander
The Blue Elephant E-50J is an industrial-grade machine imported and supported by Hiltek Machine Controls Pty Ltd.
Below is the extracted information regarding its capabilities and technical specifications.

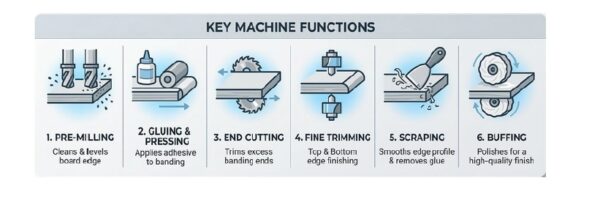

Comprehensive 6-Stage Processing
The E-50J handles the entire edge-finishing workflow in a single pass
1. Pre-Milling: Cleans and levels board edges using dual 1.8kW motors (12,000 r/min) to ensure a perfectly clean, square edge before bonding
2. Gluing & Pressing: Applies precision EVA granular glue for a permanent, seamless bond

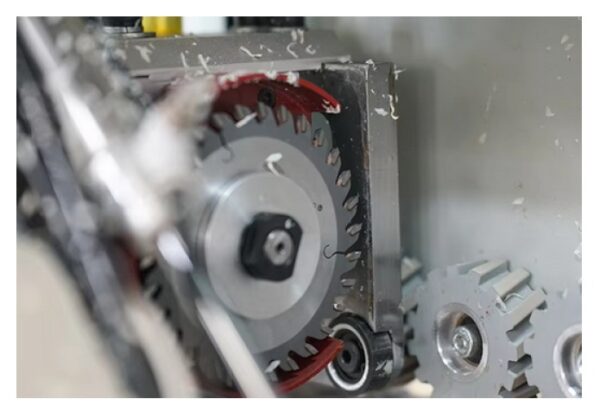

3. End Cutting: High-speed automatic head trimming for perfectly flush ends
4. Fine Trimming: Top and bottom refiningfor a smooth, professional edge profile
5. Scraping: Removes any residual glue and perfects the radius
6. Buffing: Final polishing stage for a showroom-quality finish
Technical Specifications
Capacity & Performance
| Feature | Specification |
|---|---|
| Transfer Speed | 13/18 m/min |
| Edge Banding Thickness | 0.4-3 mm |
| Edge Banding Width | 12-45 mm |
| Workpiece Thickness | 10-40 mm |
| Working Pressure | 0.7 MPa |
| Adhesive Type | EVA Granular Glue |
Motor & Electrical
| Component | Power / Spec |
|---|---|
| Pre-milling Motors | 1.8 kW x 2 |
| Fine Trimming Motors | 0.75 kW x 2 |
| End Trimming Motors | 0.37 kW x 2 |
| Buffing Motors | 0.18 kW x 2 |
| Working Voltage | 380V, 3-Phase, 50Hz |
| Heating Power | 1.5 kW |
Physical Build
- Machine Footprint: 3800mm x 800mm x 1410mm
- Construction: Heavy-duty welded industrial steel chassis with high-vibration damping for precisio

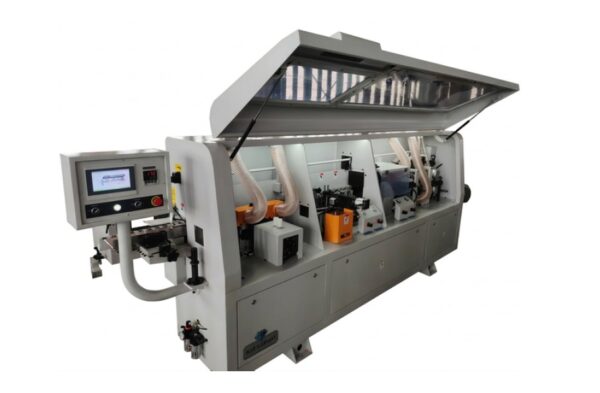

- Enclosure: Full safety hood with integrated viewing panels
Technical Specifications:
The Hiltek Advantage: Local Support You Can Trust
We know that in the woodworking industry, uptime is everything. We back
every Blue Elephant E-50J with a level of support that many small
importers simply cannot match.
12-Month Warranty: Full peace of mind with a warranty honored directly by
our local technicians.
Ready-to-Ship Spare Parts: We stock cutters, buffing wheels, and spare
motors right here in Gauteng.
Service Exchange Gluepot: Minimize downtime with our exclusive exchange
program—no waiting for lengthy repairs.
Expert Technical Team: With over 20 years of experience in woodworking
machinery, our multiple technicians are available for prompt on-site
service and repairs.
Ready to upgrade your production? Contact Hiltek Machine Controls Pty
Ltd today for a demonstration or to discuss your workshop requirements
Comprehensive 6-Stage Processing
The E-50J handles the entire edge-finishing workflow in a single
pass:
Pre-Milling: Dual 1.8kW motors (12,000 r/min) ensure a perfectly
clean, square board edge before bonding.
Gluing & Pressing: Precision EVA granular glue application for a
permanent, seamless bond.
End Cutting: High-speed automatic head trimming for perfectly
flush ends.
Fine Trimming: Top and bottom refining for a smooth,
professional edge profile.
Scraping: Removes any residual glue and perfects the radius.
Buffing: Final polishing stage for a showroom-quality finish.
